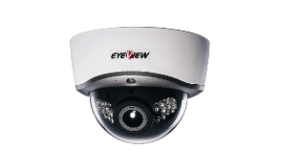

2.0M Indoor Varifocal IP Dome Camera Specification:
Model | C6-2398-POE | Image Sensor | 1/2.7" SONY IMX122 Super Illumination CMOS sensor | Effective Pixel | 1920 x 1080 (2.0 Megapixel ) | Min illumination | Color:0.01Lux @(F1.2,AGC ON),0 LUX with IR B/W:0.001Lux @ (F1.2,AGC ON),0 LUX with IR | Electronic shutter | 1/50(1/60)s - 1/100,000 s | Lens | 3M 2.8~12mm fix Iris | Day & Night | Support IR-CUT | Video Output | 1Vp-p Composite Output(75Ω/BNC) | Video compression | H.264 Main Profile, JPEG capture | Video Bite Rate | 100Kbps~8Mbps | Audio compression | G.711a (Audio in/out) | Resolution | Dual Stream (Main streams:1920 x 1080, 1280 x 720 ; Sub-Streams:704 x 480) | Frame Rate | 50Hz:25fps (1920 x 1080); 60Hz:30fps (1920 x 1080); | Image settings | Saturation, Brightness, Contrast adjustable through Client software or web server | Intelligent Alarm | Motion detect, video loss ,network disconnection, IP address conflict, storage full, storage error | Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS, PPPoE ,SMTP,NTP,Onvif, RTSP | (HTTPS,SIP ,802.1x,IPv6 optional) | Basic | Anti-flicker, dual stream, heartbeat, password protection | Communication Interface | RJ45 10M/100M, self-adaptive Ethernet interface | Alarm | Digital In / Out | Operating condition | -10℃~60℃,humidity 90% less (non-condensing) | Power supply | DC12V±10% | POE power supply | Support | Power consumption | 8.5W MAX; | IR distance | 24pcs IR / 15 M | Dimension(mm) | 142.5 x 106mm | Weight | 0.4Kg |
|
