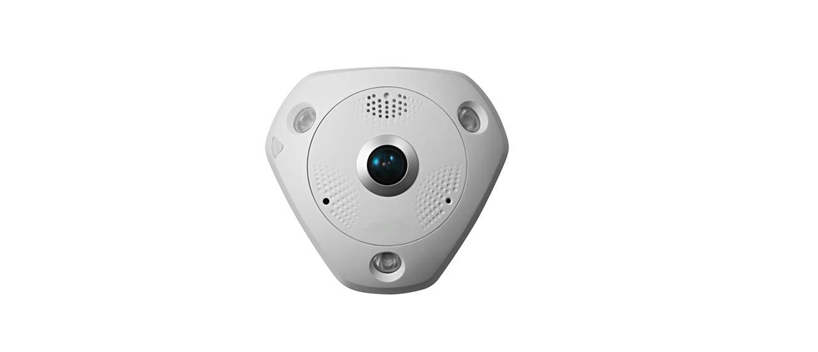

6 Megapixel Fisheye Network Camera ( IP-6MPFE-IVS ) Key Features
- 1/1.8" progressive scan CMOS
- Up to 3072 × 2048 real-time streaming
- Line crossing and intrusion detection
- 360°view angle
- Multiple viewing modes
- Multiple ePTZ streams with preset and patrol functions
- Ceiling, Wall or Table mount modes
- Up to 15m IR range
- Built-in microphone & speaker
- Audio/Alarm I/O / RS485(-S model)
- IP66(-V model)
- IK10 vandal proof(-V model) Specification Model
Parameter | IP-6MPFE-IVS | | 6 Megapixel Fisheye Network Camera | | Camera | | Image Sensor | 1/1.8” Progressive Scan CMOS | | Min. Illumination | 0.05lux @(F1.2, AGC ON)
0.3lux @(F2.8, AGC ON)
0 lux with IR | | Shutter Speed | 1/25(1/30) s to 1/100,000 s | | Lens | 1.27mm, F2.8
Angle of view: 180°(wall mount), 360°(ceiling mount) | | Lens Mount | M12 | | Day & Night | ICR | | Compression Standard | | Video Compression | H.264/MJPEG | | H.264 Type | Baseline Profile / Main Profile / High Profile | | Video Bit Rate | 32 Kbps – 16 Mbps | | Audio Compression(-S) | G.711/G.726/MP2L2 | | Audio Bit Rate(-S) | 64Kbps(G.711) / 16Kbps(G.726)/ 64Kbps(MP2L2) | | Image | | Max. Resolution | 3072 × 2048 | | Live Mode | Mode 1 | 1×Fisheye + 1×Panorama + 3×PTZ | | Mode 2 | 1×Fisheye or 4×PTZ | | Mode 3 | 1×Fisheye(main stream) + 1×Fisheye(sub stream) + 3×PTZ | | Mode 4 | 1×Panorama(main stream) + 1×Panorama(sub stream) | | Frame Rate | Mode 1:
50Hz: 1×fisheye (1280×1280, 12.5fps), 1×panoramic (2048×1536, 12.5fps), 3×PTZ (1024×768, 12.5fps)
60Hz: 1×fisheye (1280×1280, 15fps), 1×panoramic (2048×1536, 15fps), 3×PTZ (1024×768, 15fps) | Mode 2:
50Hz: 1×fisheye (3072×2048/2048×2048, 25fps) or 4×PTZ (1024×768, 25fps)
60Hz: 1×fisheye (3072×2048, 25fps/2048×2048, 30fps) or 4×PTZ (1024×768, 30fps) | Mode 3:
50Hz: 1×Fisheye(2048×2048, 12.5fps; 1024×1024, 25fps) + 1×Fisheye(720×720, 12.5fps) + 3×PTZ(1024×768, 12.5fps)
60Hz: 1×Fisheye(2048×2048, 15fps; 1024×1024, 25fps) + 1×Fisheye(720×720, 15fps) + 3×PTZ(1024×768, 15fps) | Mode 4:
50Hz: 1×Panorama(2048×1536(ceiling or table)/1920×1080(ceiling or table)/2048×1536(wall mount)/2048×768(wall mount), 25fps) + 1×Panorama(704×576, 25fps)
60Hz: 1×Panorama(2048×1536(ceiling or table)/1920×1080(ceiling or table)/2048×1536(wall mount)/2048×768(wall mount), 30fps) + 1×Panorama(704×576, 30fps) | | Digital Noise Reduction | 3D DNR | | Wide Dynamic Range | Digital WDR | | Image Setting | Saturation, Brightness, Contrast , Hue, Sharpness, AGC, White Balance | | Day/Night Switch | Auto/ Manual/ Scheduled/ Alarm Trigger | | ROI | Up to 4 fixed areas in each stream | | Network | | Network Storage | NAS, SAMB/CIFS | | Alarm Trigger | Line crossing detection, Intrusion detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception | | Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP
ONVIF(PROFILE S,PROFILE G), PSIA, CGI, ISAPI | | Security | User Authentication, Watermark, IP address filtering, Anonymous access | | Interface | | Communication Interface | 1 RJ45 10M/100M/1000M Ethernet interface
1 RS485 interface(-S) | | Audio Input | 1 3.5mm audio interface, Mic in/Line in (-S)
1 built-in microphone by default, 24db | | Audio Output | 1 3.5mm audio output interface (-S)
1 built-in speaker by default, support echo cancellation | | Alarm Input(-S) | 1 | | Alarm Output(-S) | 1 | | On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 64 GB | | General | | Operating Conditions | Indoor: -10 °C – 50 °C (14 °F – 122 °F)
Outdoor: -30 °C – 60 °C (-22 °F – 140 °F)
Humidity 95% or less (non-condensing) | | Power Supply | 12 VDC ± 10% / PoE (802.3af) | | Power Consumption | Max. 12W | | IR Range | 15 meters | | Impact Protection | -V: IEC60068-2-75Eh, 20J; EN50102, up to IK10 | | Ingress Protection level | -V: IP66 | | Dimensions | 164x152.8x43.8mm(6.46”x6.02”x1.72”) | | Weight | 1400g |
|
