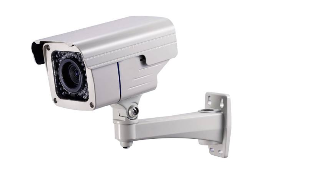

2.0MP Outdoor Varifocal IP Camera
Specification:
| Model | C2-3688-POE | | Image Sensor | 1/2.7" SONY IMX122 Super Illumination CMOS sensor | | Effective Pixel | 1920 x 1080 | | Min illumination | Color:0.01Lux @(F1.2,AGC ON),0 LUX with IR B/W:0.001Lux @ (F1.2,AGC ON),0 LUX with IR | | Electronic shutter | 1/50(1/60)s - 1/100,000 s | | Lens | 2.8~12mm fix Iris | | Day & Night | Support IR-CUT | | Video compression | H.264 Main Profile, JPEG capture | | Video Bite Rate | 100Kbps~8Mbps | | Audio compression | G.711a (Audio in/out) | | Resolution | Main streams:1920 x 1080, 1280 x 720 ; Sub-Streams:704 x 480 | | Frame Rate | 50Hz:25fps (1920 x 1080); 60Hz:30fps (1920 x 1080); | | Image settings | Saturation, Brightness, Contrast adjustable through Client software or web server | | Intelligent Alarm | Motion detect, video loss ,network disconnection, IP address conflict, storage full, storage error | | Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS, PPPoE ,SMTP,NTP,Onvif | | (HTTPS,SIP ,802.1x,IPv6 optional) | | Basic | Anti-flicker, dual stream, heartbeat, password protection | | Communication Interface | RJ45 10M/100M, self-adaptive Ethernet interface | | Alarm | Digital In / Out | | Operating condition | -10℃~60℃，humidity 90% less (non-condensing) | | Power supply | DC12V/1A | | POE power supply | Yes, Support | | Power consumption | 8.5W Max | | Protection Range | IP67 | | IR distance | 35pcs IR / 30 M | | Dimension(mm) | 95 x 89 x 159mm | | Weight | 1.3Kg(Include Bracket) |
|
