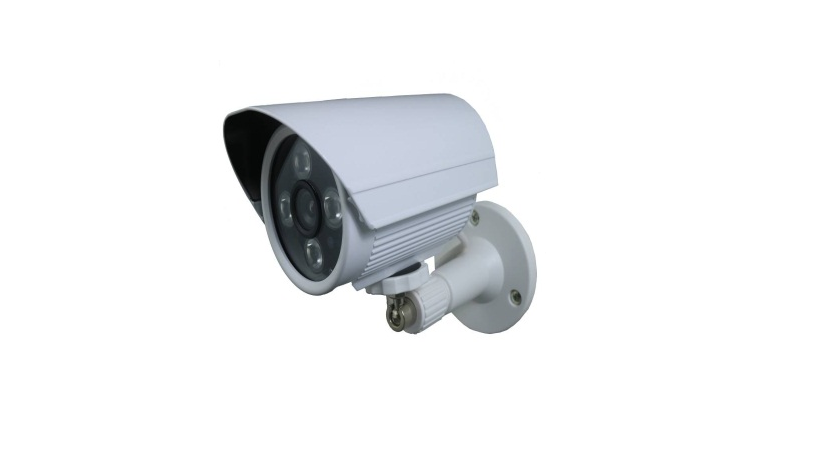

2.0Megapixel Waterproof IP Bullet Camera
Feature: - Max resolution can reach 2.0Mp(1920x1080) - Low illumination,0.01Lux @ (F1.2,AGC ON),0 LUX with IR - Support IR-CUT filter switch to achieve day and night monitoring - H.264 main profile compression, achieve low bit-rate, high definition image quality - Support dual stream - Support Standard Onvif protocol - Support mobile monitor(iPhone, BlackBerry, Android) - Support electronic shutter, adjust for different surveillance environment - Provide web, CMS, and SDK for development - Support connection with HVR/NVR/NVD - Accord with IP66 waterproof design
Specification:
Model | C1-2366PY-4.0-POE | Image Sensor | 1/2.9" SONY IMX323 Super Illumination CMOS sensor | Effective Pixel | 1920 x 1080 | Min illumination | Color:0.01Lux @(F1.2,AGC ON),0 LUX with IR B/W:0.001Lux @ (F1.2,AGC ON),0 LUX with IR | Electronic shutter | 1/50(1/60)s - 1/100,000 s | Lens | 4mm fix Iris | Day & Night | Support IR-CUT | Video Output | Optional: 1Vp-p Composite Output(75Ω/BNC) | Video compression | H.264 Main Profile, JPEG capture | Video Bite Rate | 100Kbps~8Mbps | Audio compression | G.711a (Audio in/out) ; Optional Audio in / Out | Resolution | Dual Streams (Main streams:1920 x 1080, 1280 x 720 ; Sub-Streams:704 x 480) | Frame Rate | 50Hz:25fps (1920 x 1080); 60Hz:30fps (1920 x 1080) | Image settings | Saturation, Brightness, Contrast adjustable through Client software or web server | Intelligent Alarm | Motion detect, video loss ,network disconnection, IP address conflict, storage full, storage error | Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS, PPPoE ,SMTP,NTP,Onvif, RTSP | (HTTPS,SIP ,802.1x,IPv6 optional) | Basic | Anti-flicker, dual stream, heartbeat, password protection | 3D DNR | Yes | Communication Interface | RJ45 10M/100M, self-adaptive Ethernet interface | Alarm | Digital In ;Optional Alarm in / Out | Operating condition | -10℃~60℃,humidity 90% less (non-condensing) | Power supply | DC12V | POE power supply | Yes | Power consumption | 8.5W max | Protection Range | IP66 | IR distance | 25~35m | Dimension(mm) | 77 x 80 x140 mm | Weight | 450g |
|
