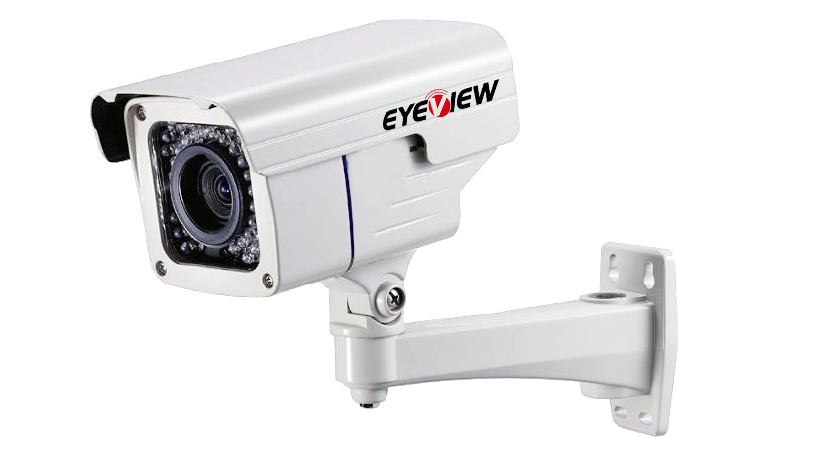

2.0Megapixel Outdoor Varifocal IP Camera
Feature:
- Max resolution can reach 2.0Mp(1920x1080)
- Low illumination,0.01Lux @ (F1.2,AGC ON),0 LUX with IR
- Support IR-CUT filter switch to achieve day and night monitoring
- H.264 main profile compression, achieve low bit-rate, high definition image quality
- Support dual stream
- Support Standard Onvif protocol
- Support mobile monitor（iPhone, BlackBerry, Android）
- Support electronic shutter, adjust for different surveillance environment
- Provide web, CMS, and SDK for development
- Support connection with HVR/NVR/NVD
- Accord with IP66 waterproof design
Specification:
| Model | C2-3688PY-POE | | Image Sensor | 1/2.9" SONY IMX323 Super Illumination CMOS sensor | | Effective Pixel | 1920 x 1080 | | Min illumination | Color:0.01Lux @(F1.2,AGC ON),0 LUX with IR B/W:0.001Lux @ (F1.2,AGC ON),0 LUX with IR | | Electronic shutter | 1/50(1/60)s - 1/100,000 s | | Lens | 2.8~12mm fix Iris | | Day & Night | Support IR-CUT | | Video Output | Optional: 1Vp-p Composite Output(75Ω/BNC) | | Video compression | H.264 Main Profile, JPEG capture | | Video Bite Rate | 100Kbps~8Mbps | | Audio compression | G.711a (Audio in) ; Optional Audio in / Out | | Resolution | Main streams:1920 x 1080, 1280 x 720 ; Sub-Streams:704 x 480 | | Frame Rate | 50Hz:25fps (1920 x 1080); 60Hz:30fps (1920 x 1080) | | Image settings | Saturation, Brightness, Contrast adjustable through Client software or web server | | Intelligent Alarm | Motion detect, video loss ,network disconnection, IP address conflict, storage full, storage error | | Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS, PPPoE ,SMTP,NTP,Onvif | | (HTTPS,SIP ,802.1x,IPv6 optional) | | Basic | Anti-flicker, dual stream, heartbeat, password protection | | 3D DNR | Yes | | Communication Interface | RJ45 10M/100M, self-adaptive Ethernet interface | | Alarm | Digital In ;Optional Alarm in / Out | | Operating condition | -10℃~60℃，humidity 90% less (non-condensing) | | Power supply | DC12V | | POE power supply | Yes | | Power consumption | 8.5W Max | | Protection Range | IP66 | | IR distance | 35pcs IR / 35 M | | Dimension(mm) | 95 x 89 x 159mm | | Weight | 1.3Kg(Include Bracket) |
|
