Bộ thông báo di tản

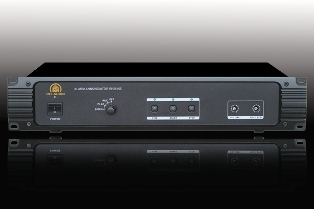

Emergency Panel RH2815E
Functional Description：
The Alarm Panel is used in a public address system to produce an alarm sound either by a short-circuit signal to trigger auto-alarm or by a manual pushbutton,it can output a built-in siren signal or a user-recorded voice alarm or siren,with the built-in 60-second recording IC,users may record their own voice alarm or siren.
※ The alarm panel produces an alarm sound automatically when activated by an
external signal or manually by the pushbutton.
※ The siren message can be either a built-in siren or a user
pre-recorded voice message.
※ 60-second digital IC for voice message recording via MIC.or LINE input.
Technical parameters：
| Model | RH2815E |
| Mic. Input | <5mV , 600ohms(Ω),unbalanced |
| Line Input | <400mV , 10k ohms(Ω),unbalanced |
| Line Output | >200mV (Siren signal or pre-recorded voice) |
| Fre. Resp. | 100 Hz~3.4kHz(±3dB) |
| THD | <0.01% at 1kHz |
| ADC/DAC | Sampling frequency:8kHz 5Bit |
| Record Time | 1minute(8000-10000 times) |
| Alarm Activation Input | One |
| Alarm Activation Level | (0V) shortcut signal |
| Power Cable | (3×0.75 mm2)×1.5M (standard) |
| Power Supply | AC 220V ± 10% 50-60Hz |
| Power Consumption | 5~10W |
| Dimension | 89(H)×483(W)×350(D) mm |
| Net Weight | 6.08kg |
