Bộ cấp nguồn 08 kênh

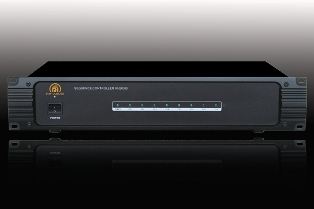

8-Channel Power Supply Sequencer RH2808S
Functional Description:
The power sequencer is used to manage a PA system’s power requirements so
that it may turn on up to 8 system components according to the order that
is desired-effectively preventing high powered equipment from overloadingthe AC mains.
※ 8 power up sequence.
※ Total output power rated at 2.5KW.
※ Power start using shorted signal from program timer to realize timing power output.
Technical parameters:
Model | RH2808S |
Handling Capacity | Total capacity:2.5KW,each output loads 165 W |
Sequence Interval | 0.4S ~ 0.5S |
Channels | CH1 ~ CH8 |
Power Cable | (3×1.5 mm2)×1.5M (standard) |
Power Supply | AC 220V ± 10% 50-60Hz |
Power Consumption | 25~30W |
Dimension | 89(H)×483(W)×350(D) mm |
Packing Size | 185(H)×520(W)×435(D) mm |
Net Weight | 7.08kg |
Gross Weight | 8.62kg |
