Bộ chọn 10 vùng loa

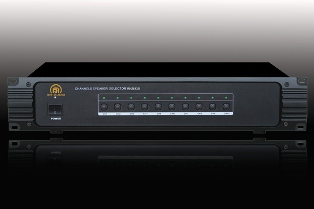

10-Zone Speaker Selector RH2813B
Functional Description:
The10-zone speaker selector system with independent on/off switches for 10 group of speakers; manual protection switch on the front panel for each zone. Custom button labels can be attached to identify each zone.
※ 2 group of 5 zones,70V/100V audio signal.
※ 2 audio inputs.
※ LED signal level meter.
※ 10-position channel selector switch.
※ Each channel power handling ≤200W,total handling capacity≤2000W.
Technical parameters:
Model | RH2813B |
A Group Input | 70V/100V, audio signal CH1~ CH5 |
B Group Input | 70V/100V audio signal 'CH6~ CH10' |
Power Handling | total capacity A, B 2000kW, per channel 200W |
Power Requirements | 110/220V±10%,50/60Hz |
Power Consumption | 10 ~ 15W |
Dimenstion | 89(H)×483(W)×366(D)mm |
Net Weight | 5 Kg |
