Bộ chống sét

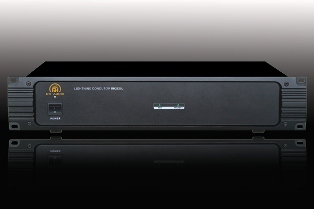

Lightning Arrestor RH2825L

Functional Description:

The Lightning Arrestor protects PA system with outdoor speakers from potential damage
caused by thunder storms and lightning.
Four independent channels provide protection for up to 20A of audio  power per channel,
when a channel exceeds the threshold the speakers are disconnected from the rest of the
system to prevent damage to other equipments.
※ 4 signal inputs (70V/100V audio signal) and 4 signal outputs(70V/100V audio signal).
※ Automatic detection of lightning strike to the audio line if it happens & the inputs
  and outputs will be cut off automatically.
※ Four independent channels provide protection for up to 20A of audio power per channel.
※ Protection against lightning strikes,over-voltage,and electricleakage.
※ Indicators for normal and protection state.
※ Lightning protection grade: IEC529/EN60 529 protection grade satisfied:IP 20.


Technical parameters:

Model RH2825L
Channels Controlled 4 channels
Input Capacity Each channel 70/100V,20A,audio signal
Output Capacity Each channel 70/100V,20A,audio signal
Lightning Protection Grade IEC529/EN60,529protection grade satisfied:IP20
Overload Threshold 165~300V(peak)
Impulse Discharge Current Iimp(8/20)us current peak:30KA
Current Leakage Protection ≤10mA
Insulation Resistance ≥10MΩ
Alarm Output Level (0V) short-cut signal(active out)
Power Cable (3×0.5 mm2)×1.5M
Power Supply AC 220V ± 10% 50-60Hz
Power Consumption 20~ 25W
Dimension 89(H)×483(W)×350(D)mm
Packing Size 185(H)×520(W)×435(D)mm
N.W 7.9kg
G.W 9.1kg
