Functional Description:

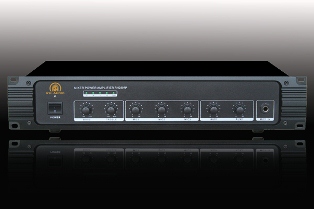

The series of PA amplifiers are designed for background music/paging and public address system installations,
these units are exceptional values,loaded with features,and are easy to install in a variety of system designs.
The mixer amplifiers features three balanced mic and two line inputs,70/130/260/360 watts of amplifier power is
available with either 70/100-volt or 4 to 16 ohms(Ω)loads.
Also included a balanced,line level output for adding additional power amplifiers.
The unit also features muting function.that MIC1 overrides MIC2,MIC3,AUX1,AUX2 with 0~30dB dB attenuation.
And features complete protection is provided for output short ircuit,overload,hightemperature,peak current limiters.
Features:
※ 2U aluminium panel.
※ Power rates: 70W/130W/260W/360W available.
※ 3 MIC inputs,2 AUX inputs,1 AUX output.
※ Individual volume controller for MIC & AUX inputs.
※ MASTER volume controller.
※ BASS and TREBLE tone controller.
※ MIC1 has priority over other inputs.
※ 70V/100V and 4~16Ω loads.
※ Output short circuit,overload,high temperature protection and alarm.
