Functional Description:

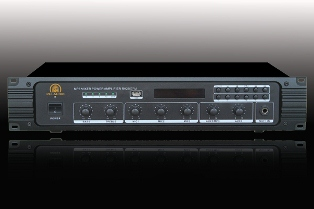

The series PA amplifiers are designed for background music/paging and public address system installations.
These units are exceptional values, loaded with features, and are easy to install in a variety of system designs.
The MP3 mixer amplifiers have features of buit-in MP3 player with a USB slot for connecting external U Disk.
Also features three balanced mic and two line inputs,70/130/260/360 watts of amplifier power is available with
either 70/100-volt or 4 to 16 ohms(Ω)loads.
And included a balanced line level output for adding additional power amplifiers.
The unit features muting function.that MIC1 overrides MIC2,MIC3,AUX1,AUX2 with 0~30dB dB attenuation.
And features complete protection is provided for output short circuit,overload,hightemperature,peak current limiters.
※ Built-in U disk MP3 player.
※ 2U aluminium panel.
※ Power rates: 70W/130W/260W/360W available.
※ 3 MIC inputs, 2 AUX inputs, 1 AUX output.
※ Individual volume controller for MP3,MIC & AUX inputs.
※ MASTER volume controller.
※ BASS and TREBLE tone controller.
※ MIC1 has priority over other inputs.
※ 70V, 100V and 4~16Ω outputs.
※ Output short circuit,overload,high temperature protection and alarm.
