RH-AUDIO RH1001ZH Two Channel 100V Audio Signal Converter
Converts a high 70v or 100v audio signal to a line level signal

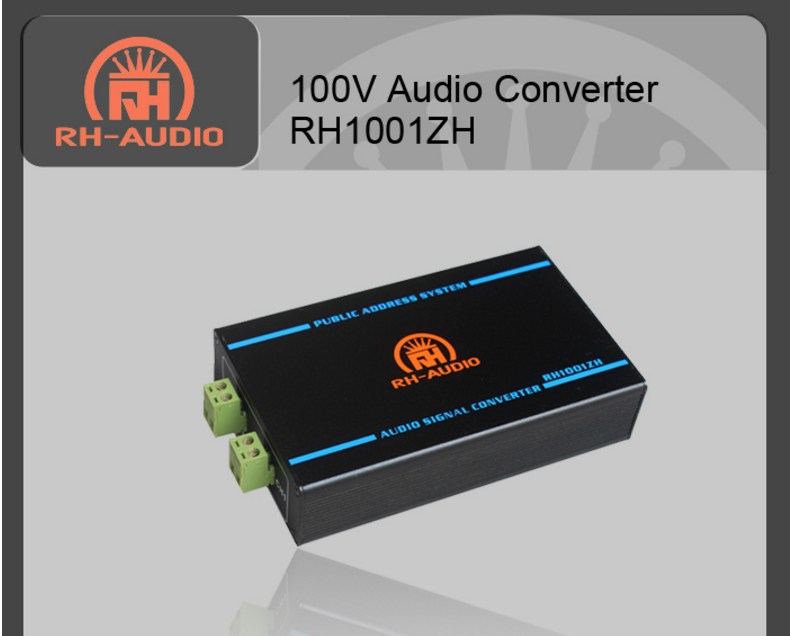

The RH-AUDIO 100V Audio Converter RH1001ZH is designed to convert a high 70v or 100v audio signal to a line level signal in the PA system.
No power needed,will be very helpful for the public address audio distribution system,it can make the system connection very easy and flexible.
Ideal for signal transmission over long distances or supplying an auxiliary output from PA amplifiers and from a 100 V audio signal source to the units with line input.
And very useful if extending or adding to existing installs as it negates the need to run new cables from existing amplifier or main equipment,simply tag onto the 70v or 100v loudspeaker circuit and feed the output into a local amplifier.
Input: 70V or 100V Input with Screw plug terminal,2 channels.
Output: Unbalanced signal with RCA connetion terminals, 2 channels.
Compact size: 136mm x 80mm x 30mm
Housing material: alloy
Weight: 450g
