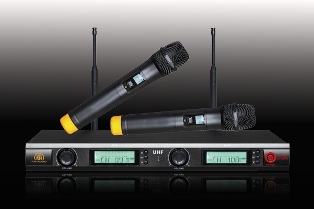

UHF 2-Channel Wireless Microphone RH360U
Functional Description:
※ Using UHF740-840MHz band to avert interferencing frequency.
※ All using quartz crystal oscillating circuits so the frequency is very steady.
※ Special design companding circuit, strongly improve S/N ratio.
※ Multilevel quiet control circuit,to avoid interference signal from outside open
the mute system.
※ Using excellent dynamic cardioid direct cartridge, the timbre bright and clear.
※ All ready output and input socket,it will be more convenience to connect every equipment.
Technical parameters:
OVERALL | RECEIVER | WIRELESS MICROPHONE |
Carrier frequency range:UHF740-840MHz | Power requirement: DC15-18V | Rf power:+12dBm |
Stability:〈±20ppm | Power:4WATER | Brewage:FM |
Dynamic range:〉95dB | Image rejection: 85dB | Frequency deviation:±40KHZ |
T.H.D:〈 0.5% | Sensitivity:5dBu(SINAD=20dB) | Power:Handheld 1.5V X 2 |
Freqency response:50HZ~18KHZ ±3dB | | |
Audio out:Balanced:0~700mV Mix:0~300mV | | |
