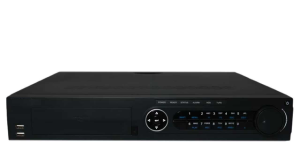

NVR-XX01 Series NVR ( NVR-1601/ NVR-3201/NVR-6401 )
| Model | | NVR-0801 | NVR-1601 | NVR-3201 | NVR-6401 | | Video/Audio input | IP video input | 8-ch | 16-ch | 32-ch | 64-ch | | Two-way audio | 1-ch, BNC (2.0 Vp-p, 1kΩ) | | Network | Incoming bandwidth | 50Mbps | 100Mbps | 200Mbps | 200Mbps | | Outgoing bandwidth | 240Mbps | 240Mbps | 160Mbps | 160Mbps | | Remote Connection | 128 | | Video/Audio output | Recording resolution | 5MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF | | CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω)
Resolution: 704 × 576 (PAL); 704 × 480 (NTSC) | | HDMI output | 1-ch, resolution:
1920 × 1080P /60Hz, 1920 × 1080P /50Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz | | VGA output | 1-ch, resolution:
1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz | | Synchronous Playback | 16 Ch | | Audio output | 2-ch, BNC (Linear, 600Ω) | | Decoding | Live view / Playback resolution | 5MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF | | Capability | 8-ch@720P, 4-ch@1080P | 16-ch@720P, 8-ch@1080P | 16-ch@720P, 8-ch@1080P | 16-ch@720P, 8-ch@1080P | | Hard disk | SATA | 4 SATA interfaces for 2 HDDs + 1 DVD-R/W (default), or 4HDDs | | eSATA | 1 eSATA interface | | Capacity | Up to 4TB capacity for each HDD | | External interface | Network interface | 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface | | Serial interface | RS-232; RS-485; Keyboard | | USB interface | 3 × USB 2.0 | | Alarm in | 16 | | Alarm out | 4 | | Others | Power supply | 100 ~ 240 VAC, 6.3 A, 50 ~ 60 Hz | Consumption
(without hard disk or DVD-R/W) | ≤ 35 W | ≤ 40W | ≤ 45 W | ≤ 45 W | | Working temperature | -10 ºC ~ +55 ºC (14ºF ~ 131ºF) | | Working humidity | 10 % ~ 90 % | | Chassis | 19-inch rack-mounted 1.5U chassis | Dimensions
(W × D × H) | 445 × 390 ×70 mm ( 17.5"× 15.3" × 2.8") | Weight
(without hard disk or DVD-R/W ) | ≤ 4 Kg (8.82 lb) |
|
