Bộ trung tâm ma trận kỹ thuật số 16 x 16

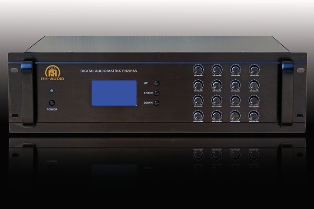

16x16 Digital Audio Matrix RH2816S
Functional Description：
The 16x16 Digital Audio Matrix offers an easy operation of collecting different music programme
from different audio sources,and can play a same audio to all the speaker zones,also can play
diferent audio to different speaker zone.
※ 16X16 Digital Audio Matrix (3U panel).
※ With LCD sreem in English menu.
※ With volume control for each zone.
※ This control unit integrates 16 source inputs, 16 amplifier outputs and a priority bus interface.
it can mute background music whenever it has received priority input signals for zone paging and emergency alarms.
※ 16 inputs and 16 outputs.
※ LCD display and for convenient operation program schedules.
※ Prority bus for zone paging and emergency alarms.
※ Several paging modes (all zone,group zones,and individual zone) could be achieved
through this paging console.
Technical parameters：
| Model | RH2816S |
| Line Input | 16 channels:EMC2 for emergency alarm |
| Paging Mic. Input | RMIC1~RMIC5:10k ohms(Ω) 10V ,balanced |
| Line Output | 16 channels:(1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16 available) |
| EMC1 Input | 10k ohms(Ω) 330mV ,unbalanced |
| Line Input | 10k ohms(Ω) 330mV ,unbalanced |
| Line Output | 10k ohms(Ω) 0.775V (0 dB) ,unbalanced |
| Mute functions | RMIC1 overrides Input B, RMIC2 overrides Input C;RMIC3 overrides input D;RMIC4 overrides input E;RMIC5 overrides input F; EMC1 overrides EMC2. |
| Fre. Resp. | 60 Hz ~ 16k Hz (± 3 dB) |
| Alarm Activation Input | (0V)Shortcut signal ALARM IN:CH1~CH16 |
| Alarm Activation Output | (0V)Shortcut signal ALARM OUT:CH1~CH16 |
| Indicator | POWER |
|
|
